Vacation projects

April 7th, 2009 | Author: admin

Looking more like an airplane

Pedal plane coming along

The control linkage soon to be attached.

The landing gear legs were installed today.

Posted in Control Linkage, General Pedal Plane, Making Fuselage | No Comments »

Putting the Empenage/tail together

February 9th, 2009 | Author: admin

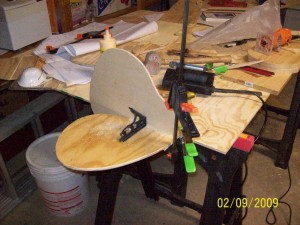

If only real airplanes could have a tail that goes together this easy. The rudder and elevator mate together for a perfect fit. Just glue, and be sure that both items are square at a 90 deg. angle.

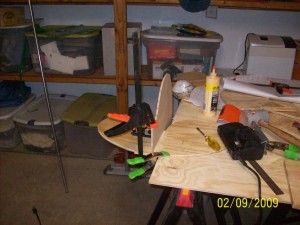

Keep the Rudder at a 90 deg. angle to the elevator

Posted in General Pedal Plane, Making Empenage/Tail | No Comments »

Misc. items to finish

February 9th, 2009 | Author: admin

The plans call for a few small pieces that are quick and easy to do. I’ll list a few here.

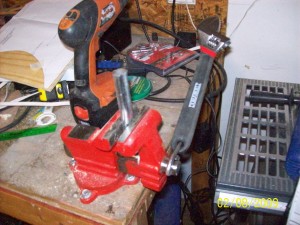

The control linkage is made up of small electrical conduit pieces that we smash in the bench vice. My cheap bench vice (from Harbor Freight) is a little small of the task.

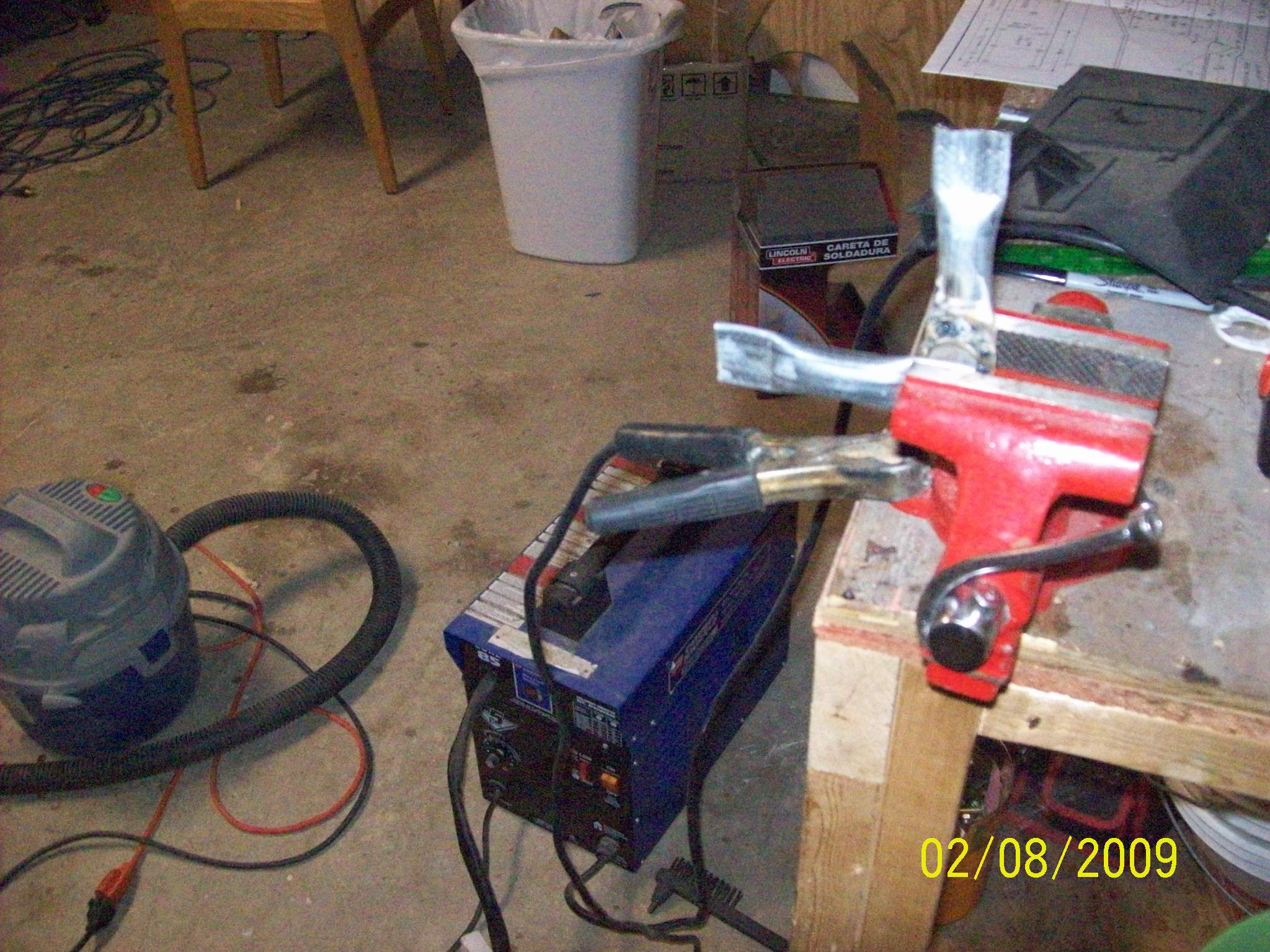

A few places call for welding. Here I'm welding the bell crank for the control linkage.

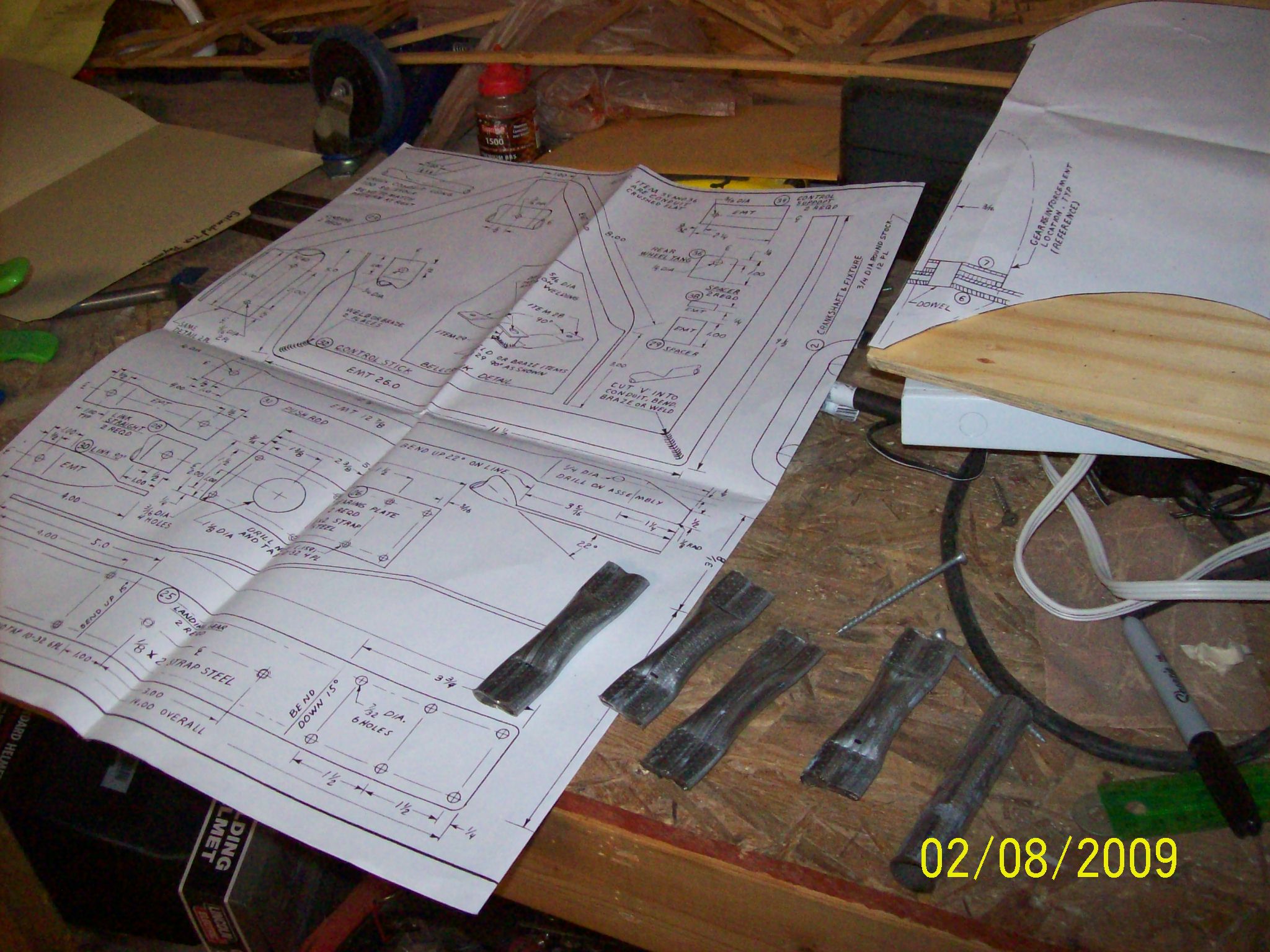

A little bit of time is spent looking over the plans. Here I'm looking over making the control linkage.

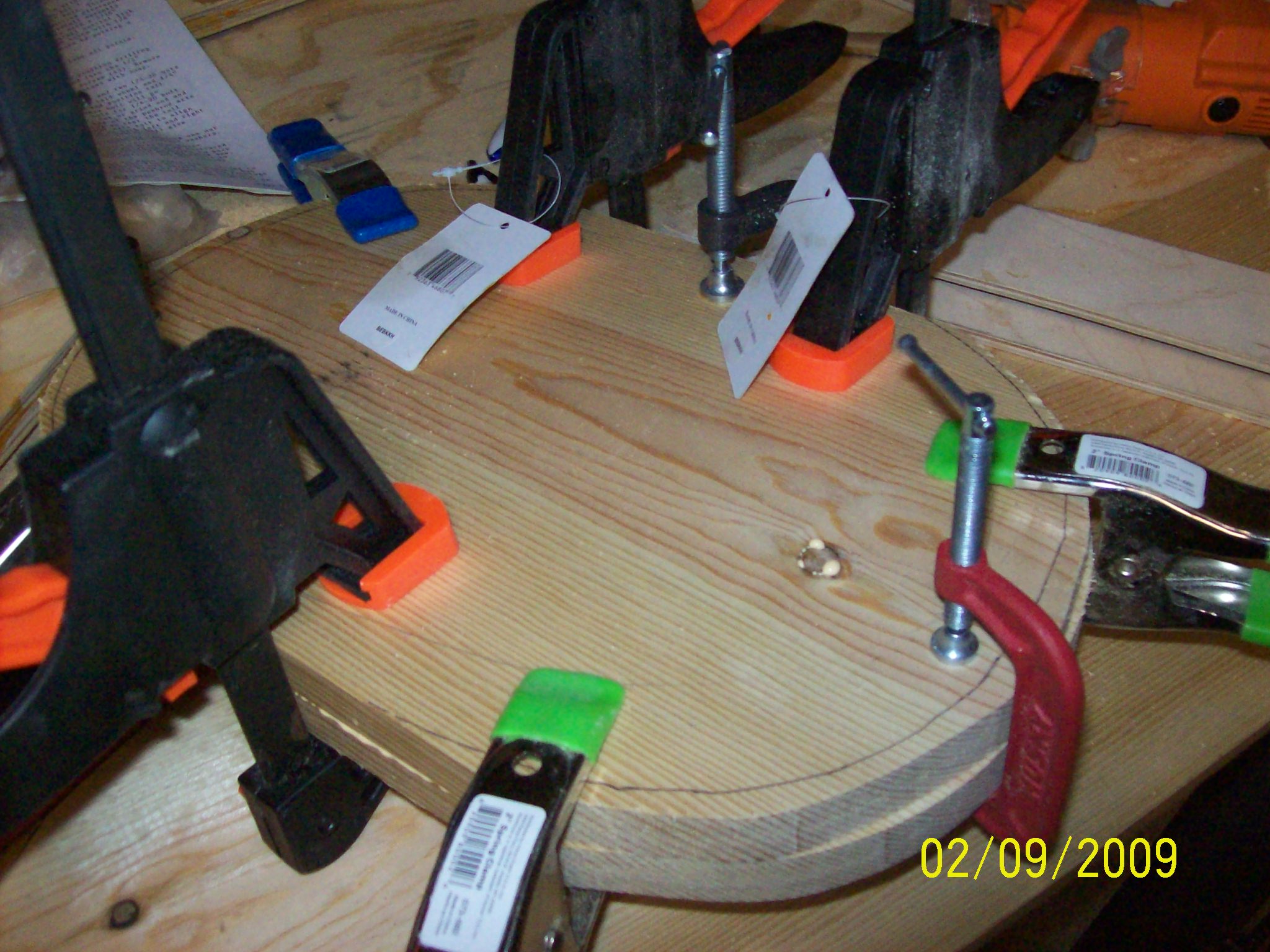

Constructing the nose plate starts with 2 1x10 pieces of pine that are laminated together.

Posted in Control Linkage, General Pedal Plane | No Comments »
